Komplekts Lowrance ActiveTarget™2 Module +Transducer + Mounts

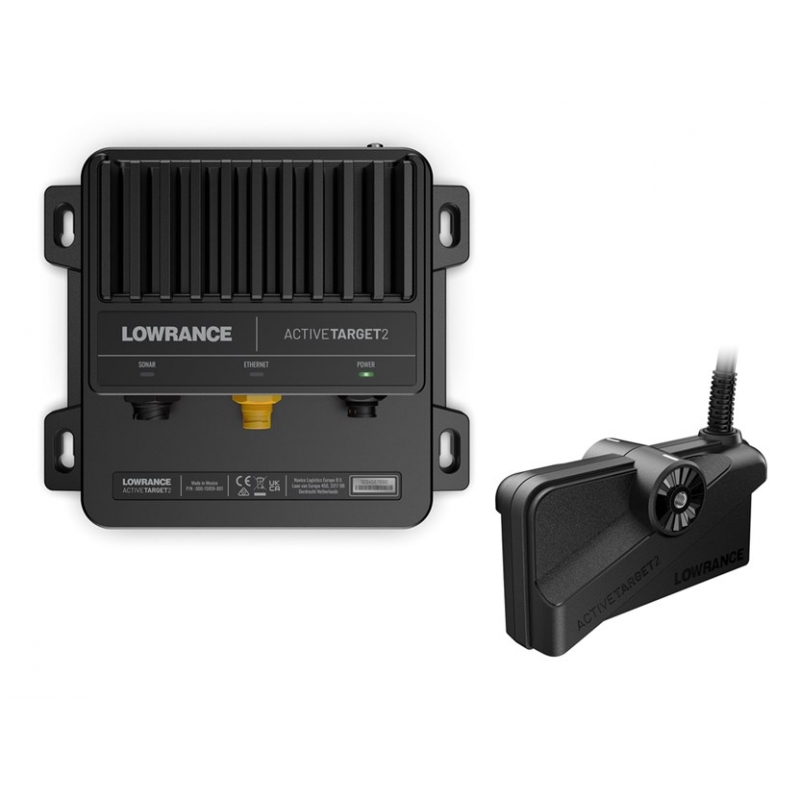

Komplektā ietilpst: ActiveTarget™2 kit Includes Module,Transducer with 7.62 m (25 ft) cable, and Mounts

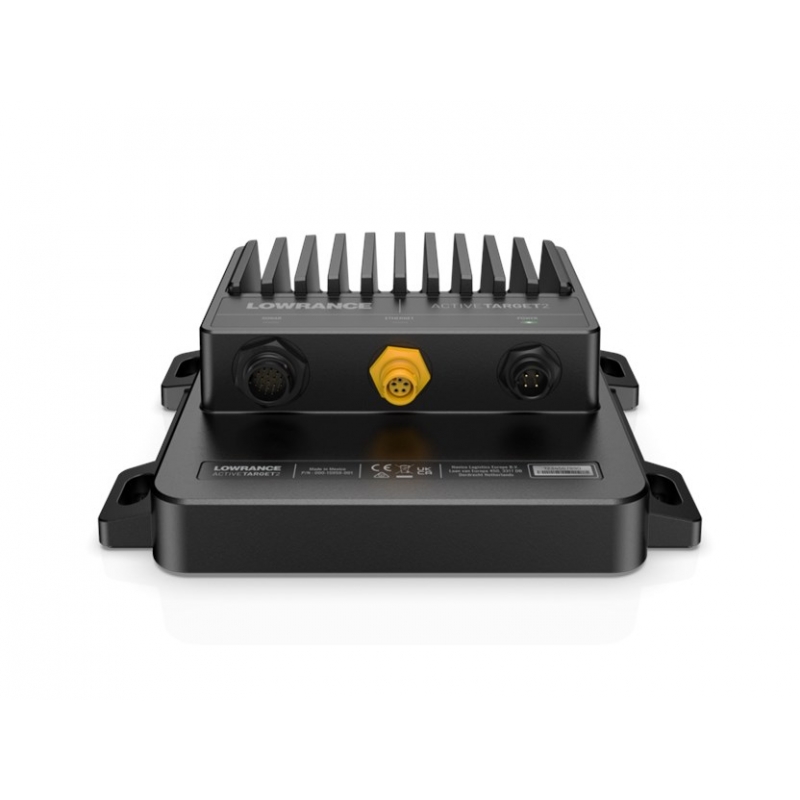

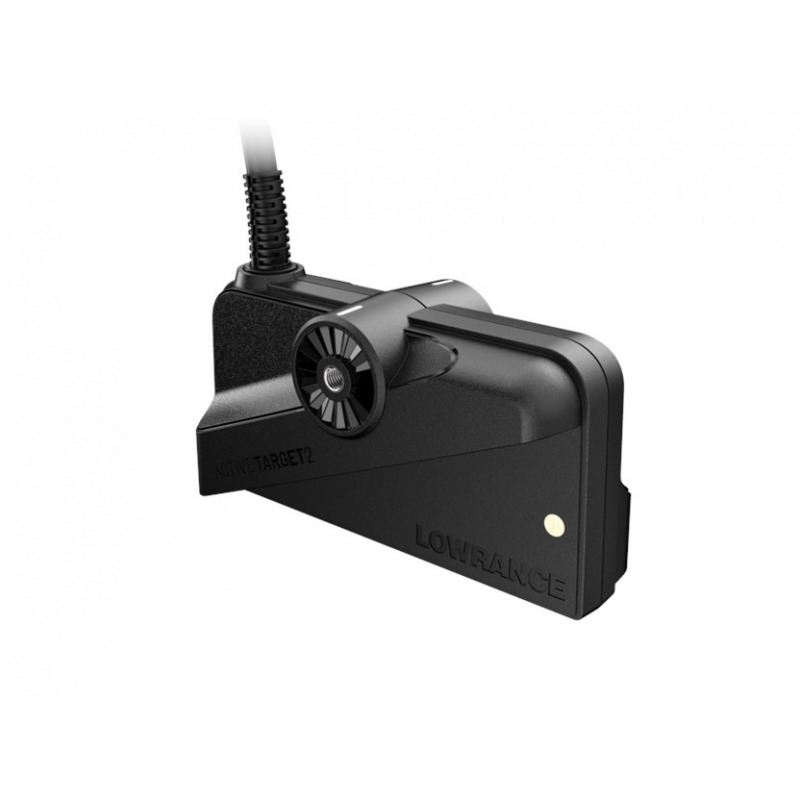

Lowrance Active Target 2 Live Sonar - sonar transducer with transmitter box
Whether you're a seasoned angler or a newly qualified fisherman, catching fish is easy with the Lowrance ActiveTarget 2 Live system. High resolution sonar lets you see how fish behave on structure and react to your bait in real time, allowing you to quickly adjust your behaviors if necessary. The operation is very simple: Cast your bait and watch what is happening in incredible detail. You see everything from the sinking of the bait, to the reaction and bite of the fish, to the retrieval to the surface.
In addition, the ActiveTarget 2 is robust enough to withstand all fishing conditions.
Go out and catch some big fish, but remember: if the fish doesn't feel like biting, you're unlikely to persuade it to do so!
Get the best picture:

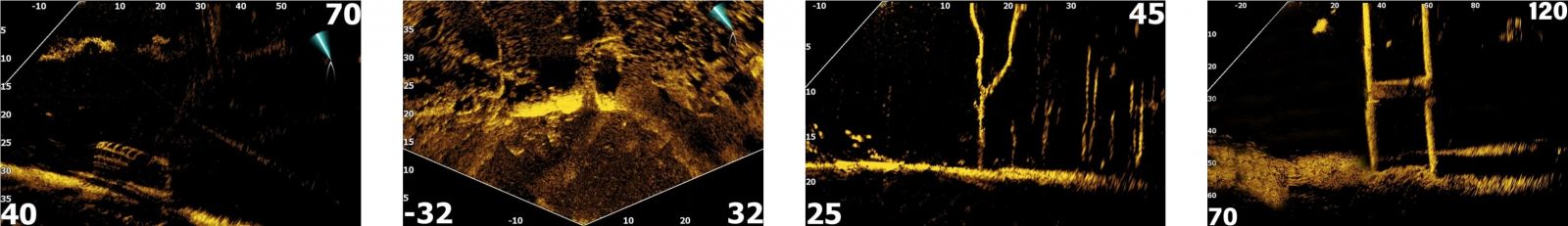

The ActiveTarget 2 features optimized image and stabilization settings that deliver sharp and clear live-action images of fish and structure, even in harsh conditions. And thanks to the easy-to-use interface, you'll be making the most of your sonar in no time. Whether you're a seasoned pro or just getting into the world of fishing, the Lowrance / Active Target 2 Live Sonar is the perfect choice for you.
Optimum image reproduction:
The ActiveTarget 2 features optimized image and stabilization settings that deliver sharp and clear live-action images of fish and structure, even in harsh conditions. And thanks to the easy-to-use user interface, you can get the most out of your sonar. Whether you are a seasoned pro or a beginner, the Lowrance / Active Target 2 Live Sonar is the perfect choice for you.
See all about the boat:

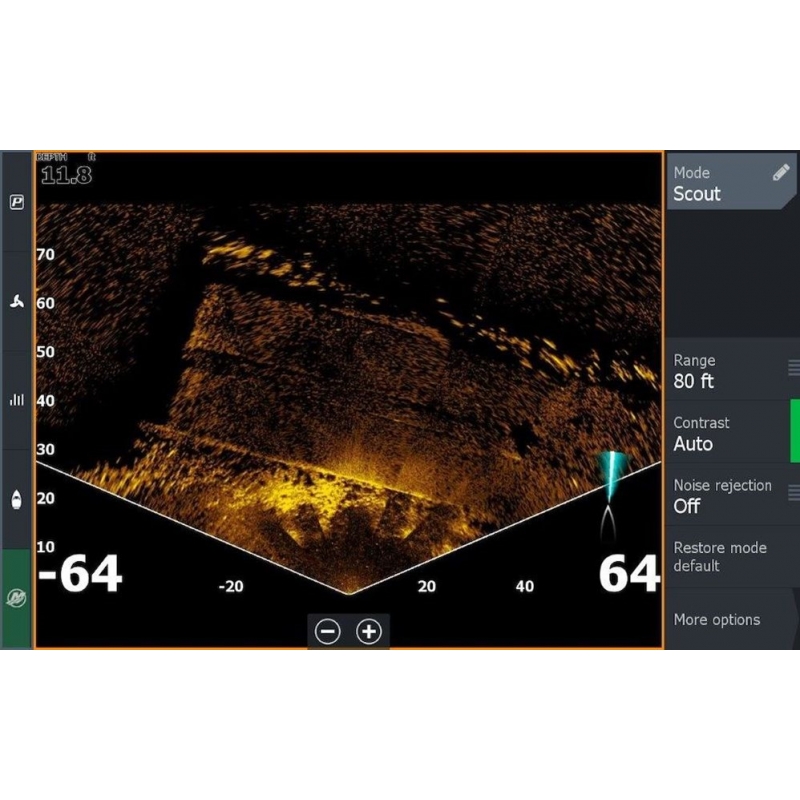

Track fish and your bait presentation with high-resolution views in front of, under and to the sides of your boat. Use Scout mode to see an ultra-wide overhead view of structure and fish activity in front of your boat. Scout mode is perfect for finding large individual fish and schools of fish, among other things.
Connectivity:
Compatible with the following devices: HDS-PRO, HDS-LIVE, ELITE FS and HDS-Carbon
Connection via Lowrance Ethernet
SPECIFIKĀCIJA:
Connectivity
Ethernet Ports
Yes: 1 - 100 Mbit Ethernet Port
Electrical
Power Consumption max
1.5A @ 13.8VDC
Power Consumption typical
1.5A @ 13.8VDC
Recommended Fuse Rating
3A
Supply Voltage
10.8 VDC - 31.2 VDC
Environment
Humidity
60°C, 95% relative humidity (RH) for 18 hours
Operating Temperature Range
5°F to 131°F (-15°C to 55°C )
Shock Vibration
100,000 cycles of 20 G
Storage Temperature Range
-22°F to 158°F (-30°C to 70°C )
Waterproofrating
IP67
Physical
Dimensions W x H x D
Module: 8.63" (219.3mm) x 7.56" (192.1mm) x 2.86" (72.9mm) Transducer: 5.90" (149.8mm) x 3.24" (82.4mm) x 2.28" (58.0mm)
Mounting Type
Module: Surface Mount Transducer: Bracket Mount
Weight
Module: 4.12 lbs (1.86 kg) Transducer: 2.67 lbs (1.21 kg)
Other
Interface
Ethernet to: HDS Pro HDS Live HDS Carbon Elite FS
Warranty Period
1 Year + 4 additional years of upgrade options Totaling 5 years
| Ražotājs: | Lowrance |
