Devējs Lowrance ActiveTarget™2 Transducer Only

Devējs Lowrance ActiveTarget™2 Transducer Only
Skaits:
Produkta apraksts
ActiveTarget® 2 gives you the highest resolution, widest, and clearest live views of fish and structure. By watching fish respond to your lure in real-time, you can make the quick adjustments that make the difference and help you catch more fish.

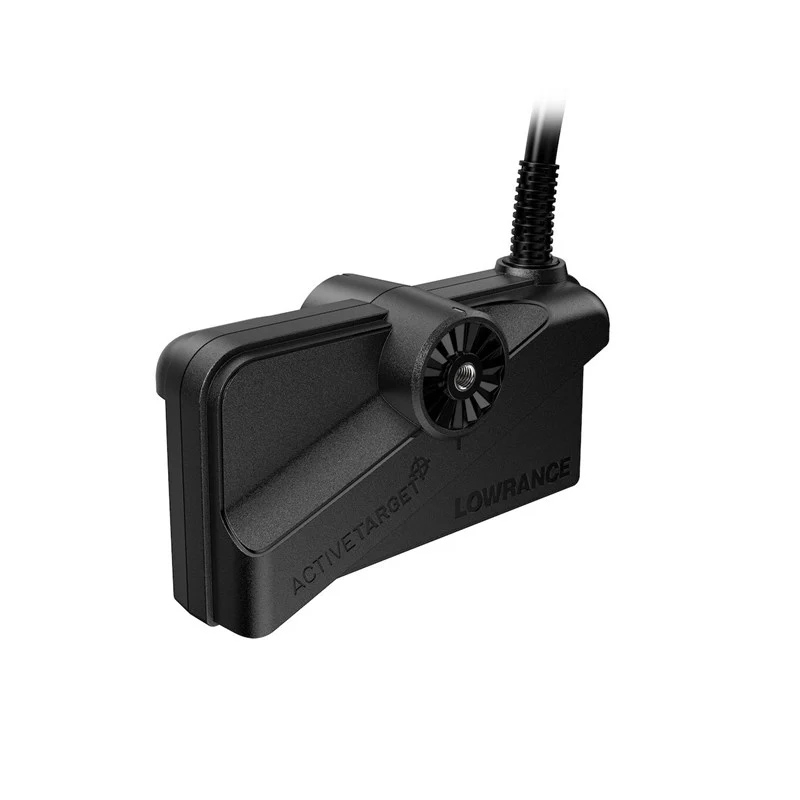

Lowrance ActiveTarget 2 transducer

Whether you're a seasoned angler or a newly qualified fisherman, catching fish is easy with the Lowrance ActiveTarget 2 Live system. High resolution sonar lets you see how fish behave on structure and react to your bait in real time, allowing you to quickly adjust your behaviors if necessary. The operation is very simple: Cast your bait and watch what is happening in incredible detail. You see everything from the sinking of the bait, to the reaction and bite of the fish, to the retrieval to the surface.

In addition, the ActiveTarget 2 is robust enough to withstand all fishing conditions.
Go out and catch some big fish, but remember: if the fish doesn't feel like biting, you're unlikely to persuade it to do so!

Get the best picture:

The ActiveTarget 2 features optimized image and stabilization settings that deliver sharp and clear live-action images of fish and structure, even in harsh conditions. And thanks to the easy-to-use interface, you'll be making the most of your sonar in no time. Whether you're a seasoned pro or just getting into the world of fishing, the Lowrance / Active Target 2 Live Sonar is the perfect choice for you.

Optimum image reproduction:

The ActiveTarget 2 features optimized image and stabilization settings that deliver sharp and clear live-action images of fish and structure, even in harsh conditions. And thanks to the easy-to-use user interface, you can get the most out of your sonar. Whether you are a seasoned pro or a beginner, the Lowrance / Active Target 2 Live Sonar is the perfect choice for you.

See all about the boat:

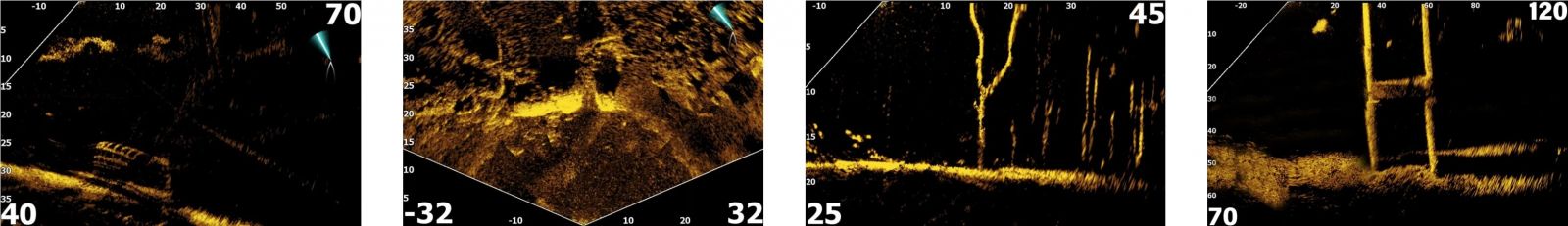

Track fish and your bait presentation with high-resolution views in front of, under and to the sides of your boat. Use Scout mode to see an ultra-wide overhead view of structure and fish activity in front of your boat. Scout mode is perfect for finding large individual fish and schools of fish, among other things.

Connectivity:

Compatible with the following devices: HDS-PRO, HDS-LIVE, ELITE FS and HDS-Carbon
Connection via Lowrance Ethernet

See more at one

View multiple ActiveTarget 2 views simultaneously with the HDS® Pro and a second optional ActiveTarget® 2 system. Monitor multiple views simultaneously - from forward, down and scout modes - and activate additional 180 and Scout Wide* views for more effective fish and lure tracking in front of the boat.

*requires additional Scout Wide mount



Specifications



Connectivity

Ethernet Ports

Yes: 1 - 100 Mbit Ethernet Port

Electrical

Power Consumption max

1.5A @ 13.8VDC

Power Consumption typical

1.5A @ 13.8VDC

Recommended Fuse Rating

3A

Supply Voltage

10.8 VDC - 31.2 VDC

Environment

Humidity

60°C, 95% relative humidity (RH) for 18 hours

Operating Temperature Range

5°F to 131°F (-15°C to 55°C )

Shock Vibration

100,000 cycles of 20 G

Storage Temperature Range

-22°F to 158°F (-30°C to 70°C )

Waterproofrating

IP67

Physical

Dimensions W x H x D

Module: 8.63" (219.3mm) x 7.56" (192.1mm) x 2.86" (72.9mm) Transducer: 5.90" (149.8mm) x 3.24" (82.4mm) x 2.28" (58.0mm)

Mounting Type

Module: Surface Mount Transducer: Bracket Mount

Weight

Module: 4.12 lbs (1.86 kg) Transducer: 2.67 lbs (1.21 kg)

Other

Interface

Ethernet to: HDS Pro HDS Live HDS Carbon Elite FS

Warranty Period



1 Year + 4 additional years of upgrade options Totaling 5 years

Ražotājs: Lowrance
